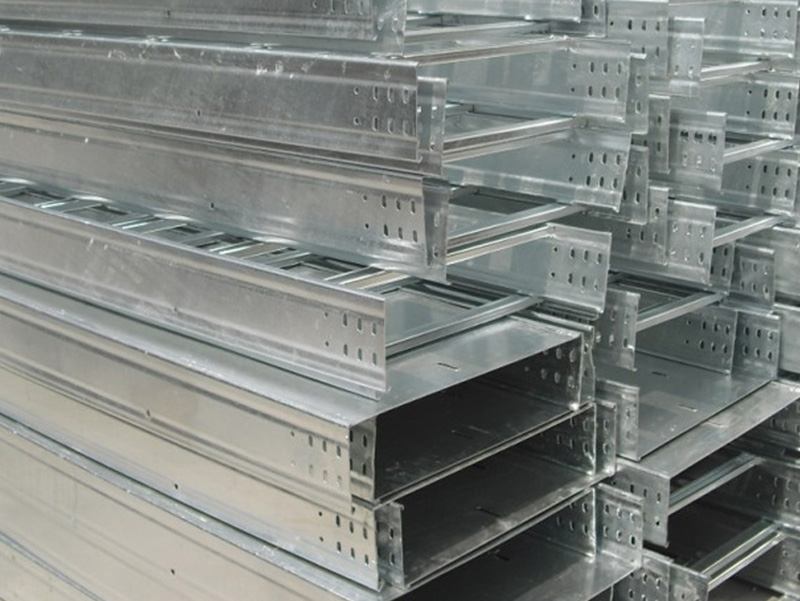

托盤式電纜橋架具有重理輕載荷大造型美觀結構簡單安裝方便等優點。它既適用于動力電纜的安裝,也透用于控制電纜的敷設。托盤式電纜橋架其表面處理分為鍍和噴漆兩種,在重腐蝕環境中可特殊防腐處理。托盤式電纜橋架備有護罩,所有配件與托盤式槽式橋架通用。
The tray type cable tray has the advantages of heavy handling, light load, large appearance, simple structure, and convenient installation. It is suitable for both the installation of power cables and the laying of control cables. The surface treatment of tray type cable trays can be divided into two types: plating and painting, and special anti-corrosion treatment can be applied in heavily corrosive environments. The tray type cable tray is equipped with a cover, and all accessories are common to the tray type slot type cable tray.
托盤式電纜橋架根據結構可分為:有孔托盤無孔托盤和組裝式托盤。
Tray type cable trays can be divided into perforated trays, non perforated trays, and assembled trays based on their structure.
(1)有孔托盤是由帶孔眼的底板和側板所組成的槽形部件,或由整塊鋼板沖孔后彎制成的部件。
(1) A perforated tray is a groove shaped component composed of a bottom plate and a side plate with holes, or a component made by punching and bending a whole steel plate.

(2)無孔托盤是由底板與側邊構成的或由整塊鋼板制成的槽型部件。
(2) A perforated tray is a groove shaped component composed of a bottom plate and side edges or made of an entire steel plate.
(3)組裝式托盤是由適于工程現場任意組合的有孔部件用螺栓或插接方式連接成托盤的部件。
(3) Assembled pallets are components that are connected to a pallet by bolts or plugs, which are suitable for any combination of perforated components on the engineering site.
他們都是用來敷設電纜的,低壓電纜和控制電纜共用同一托盤或梯架時,應選用中間設置隔板的梯架或托盤。
They are all used for laying cables. When low-voltage cables and control cables share the same tray or ladder, a ladder or tray with a partition in the middle should be selected.
槽式電纜橋架與無孔托盤式電纜橋架是同一種產品嗎?
Are slot type cable trays and perforated tray type cable trays the same product?
槽式電纜橋架與無孔托盤式電纜橋架是不是都可以敷設電力電纜?
Can both slot type cable trays and perforated tray type cable trays be used for laying power cables?
槽式直通電纜橋架與無孔托盤式電纜橋架是都可以敷設電力電纜;斷面結構形式不同而已。
Both trough type through cable trays and perforated tray type cable trays can be used for laying power cables; The cross-sectional structure is just different.
封閉的槽盒無蓋的托盤還有梯架都屬于電纜橋架,三種橋架的結構形式不同,一些性能也有差異,比如防護性以槽式好梯架差,但通風冷卻性卻相反。
Closed trays, uncovered trays, and ladders all belong to cable trays. The three types of trays have different structural forms and some performance differences. For example, the best protection is the trough type, while the worst is the ladder, but the opposite is true for ventilation and cooling.
